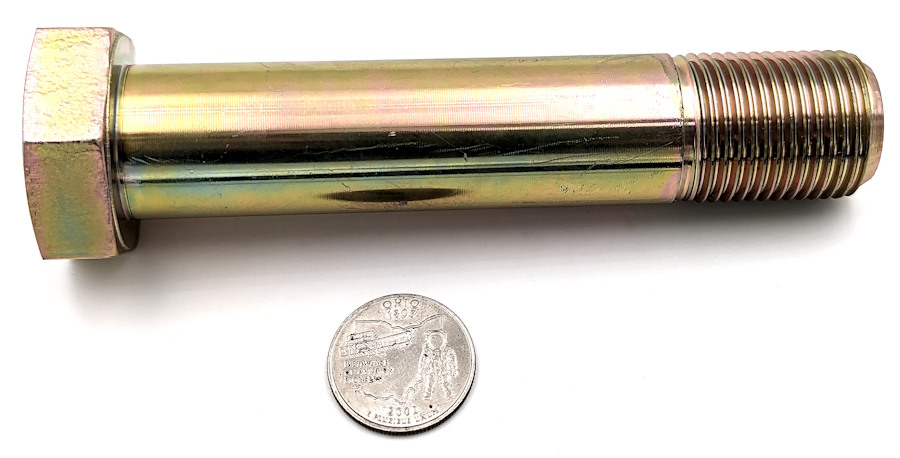

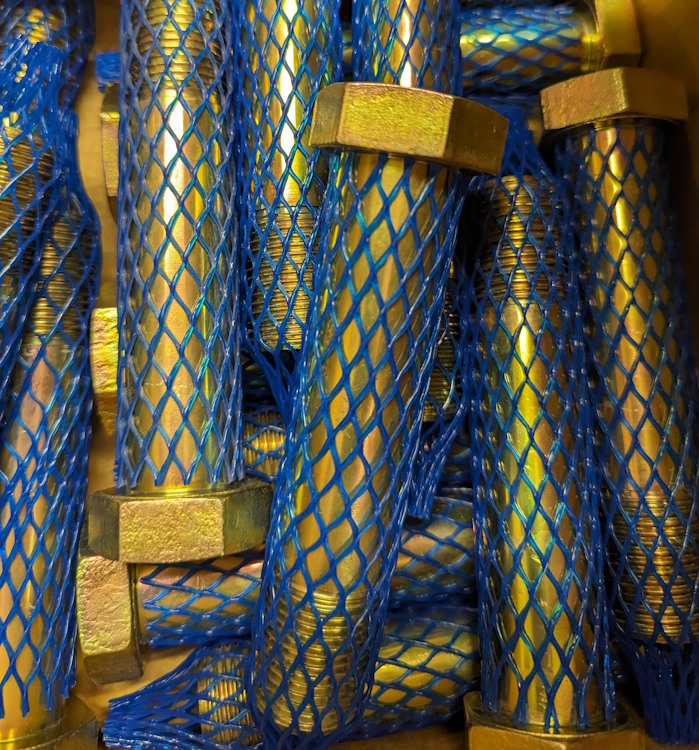

NAS6616-56 | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6616-56 |
| Stock |
21 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
1.26 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
1.440
MIN. FLATS WIDTH (HEAD)
1.427
MIN. POINTS WIDTH (HEAD)
1.619
MAX. HEAD THICKNESS
0.515
MIN. HEAD THICKNESS
0.500
MIN. WASHER FACE DIAMETER
1.398
MAX. BODY DIAMETER
0.9990
MIN. BODY DIAMETER
0.9980
NOMINAL GRIP LENGTH
3.500
NOMINAL TOTAL LENGTH
4.809
MAX. MAJOR DIAMETER (THREADS)
0.993
MIN. MAJOR DIAMETER (THREADS)
0.986
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
1.0000-12 UNJF-3A
