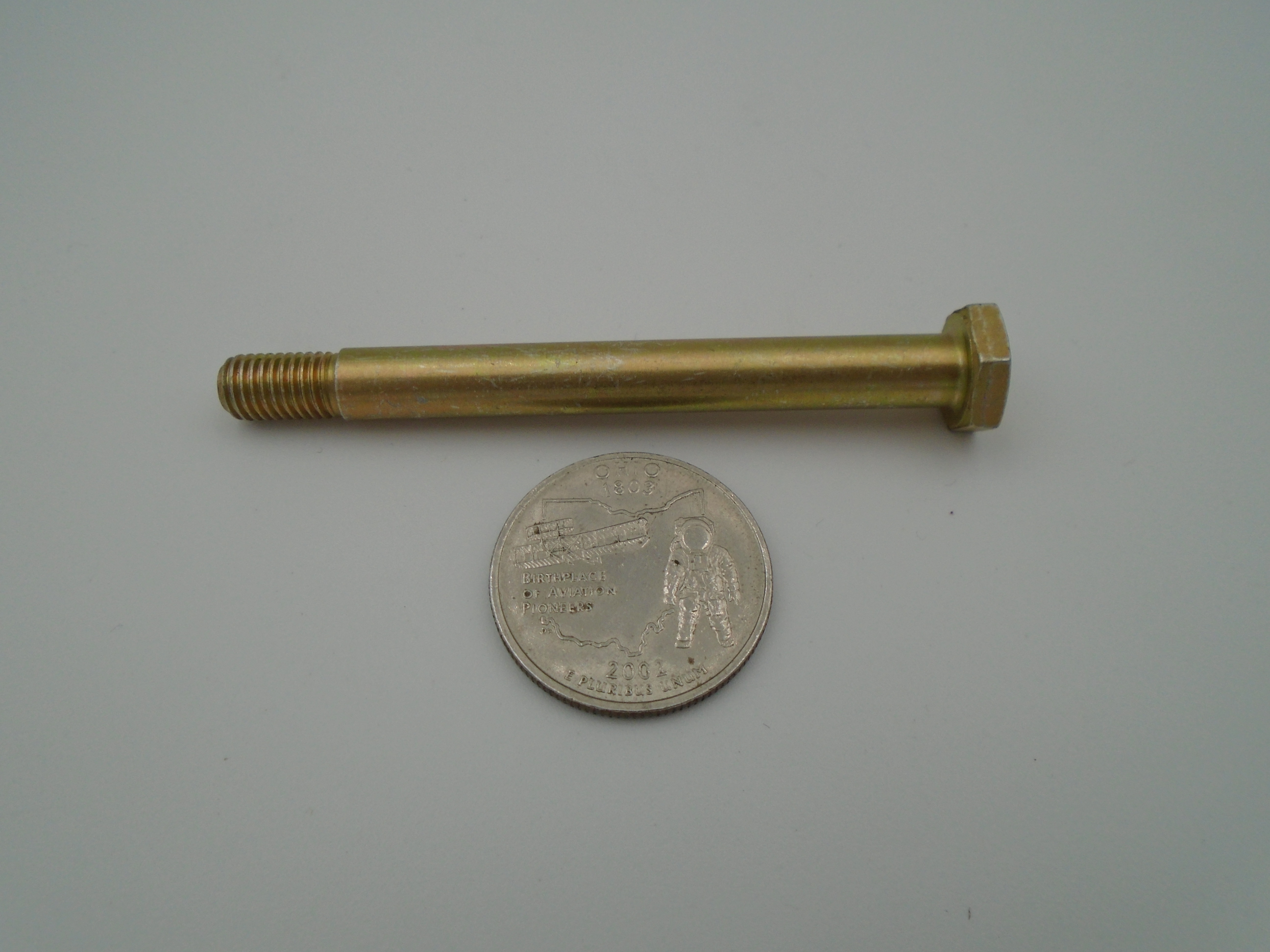

NAS6604-35X | TENSION BOLT
| INVENTORY |
| Part Number |
NAS6604-35X |
| Stock |
67 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.439
MIN. FLATS WIDTH (HEAD)
0.429
MIN. POINTS WIDTH (HEAD)
0.480
MAX. HEAD THICKNESS
0.140
MIN. HEAD THICKNESS
0.125
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2651
MIN. BODY DIAMETER
0.2641
NOMINAL GRIP LENGTH
2.188
NOMINAL TOTAL LENGTH
2.613
MAX. MAJOR DIAMETER (THREADS)
0.244
MIN. MAJOR DIAMETER (THREADS)
0.241
METALLURGICAL HARDNESS
160 - 180 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.2500-28 UNJF-3A
