| INVENTORY |
| Part Number |

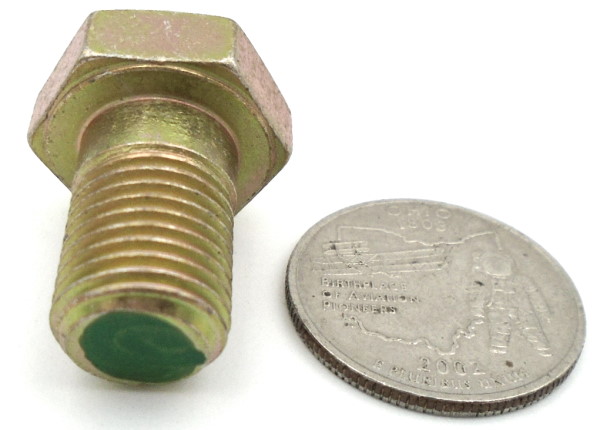

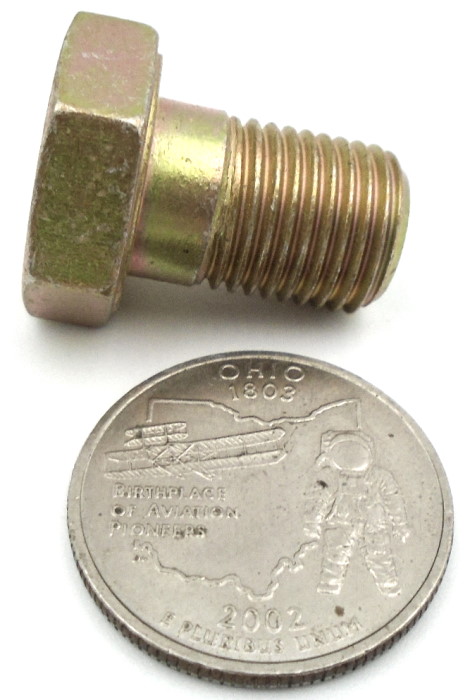

NAS6308-3 |
| Stock |
0 |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.069 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.741
MIN. POINTS WIDTH (HEAD)
0.836
MAX. HEAD THICKNESS
0.265
MIN. HEAD THICKNESS
0.250
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4995
MIN. BODY DIAMETER
0.4985
NOMINAL GRIP LENGTH
0.188
NOMINAL TOTAL LENGTH
0.716
MAX. MAJOR DIAMETER (THREADS)
0.4930
MIN. MAJOR DIAMETER (THREADS)
0.4880
MATERIAL
Corrosion Resistant Steel (A286 UNS S66286 - CONFORMS TO CHEMISTRY OF AMS5731, AMS5732, AMS5737, OR AMS5853)
METALLURGICAL HARDNESS
160 - 190 KSI Ftu
FINISH
CADMIUM PLATE PER AMS-QQ-P-416, TYPE II, CLASS 2. IDENTIFY WITH GREEN DYE OR PAINT ON THREAD END.
THREAD SPECS
.5000-20 UNJF-3A
