| INVENTORY |
| Part Number |

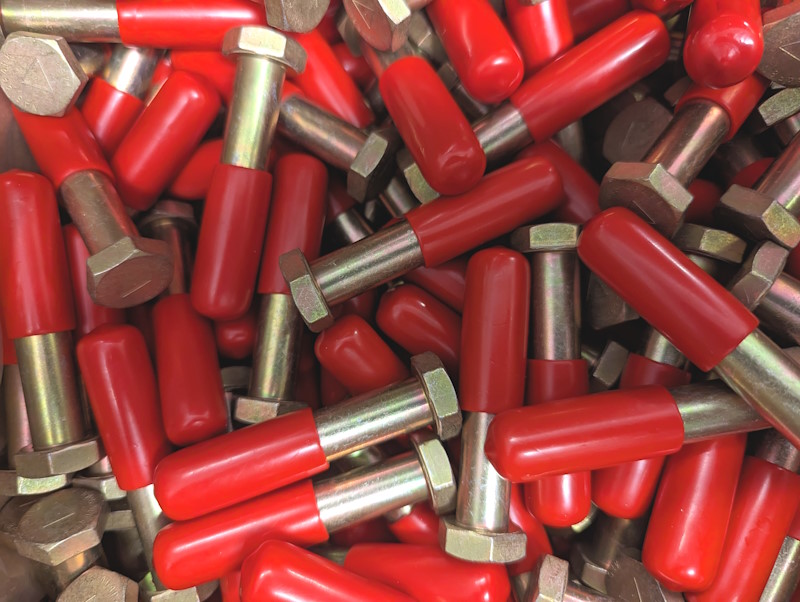

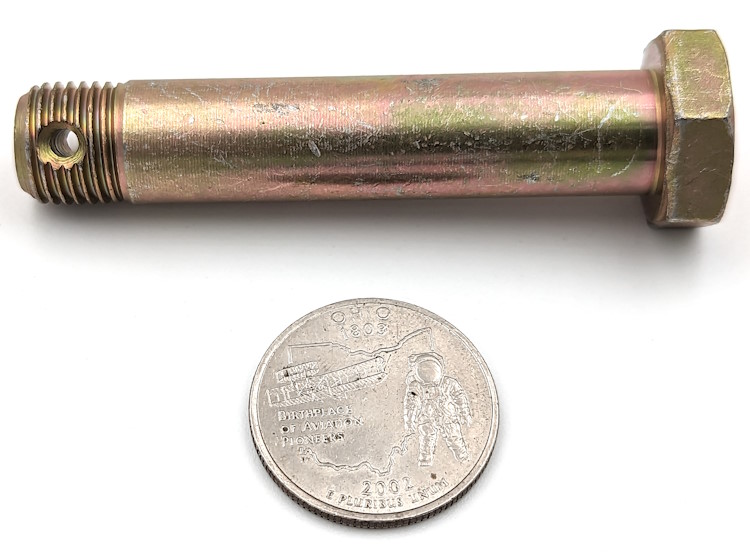

NAS464P8-33 |
| Stock |
0 |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.167 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.752
MIN. FLATS WIDTH (HEAD)
0.740
MAX. HEAD THICKNESS
0.266
MIN. HEAD THICKNESS
0.234
MIN. WASHER FACE DIAMETER
0.710
MAX. BODY DIAMETER
0.4991
MIN. BODY DIAMETER
0.4982
NOMINAL GRIP LENGTH
2.063
NOMINAL TOTAL LENGTH
2.484
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.5000-20 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
