| INVENTORY |
| Part Number |

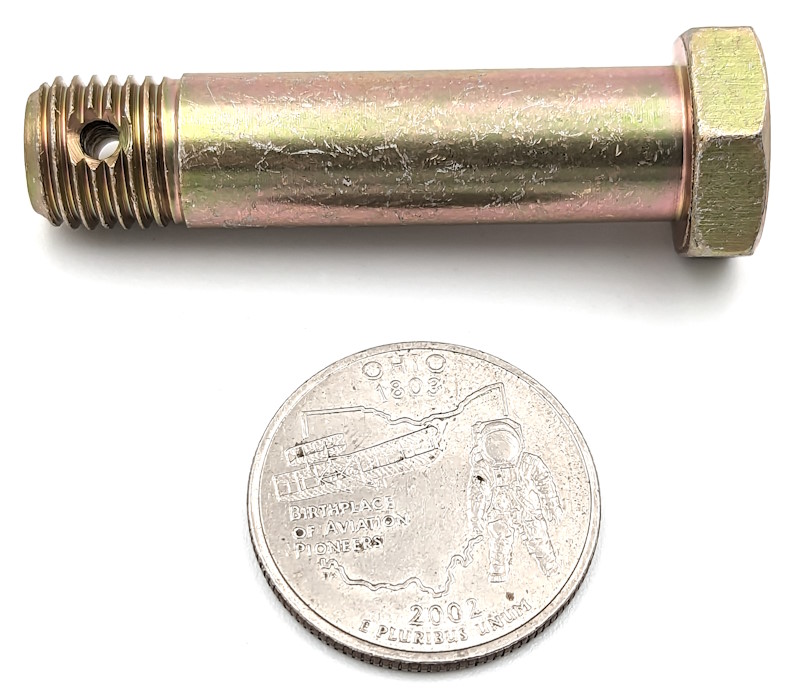

NAS464P7-22 |
| Stock |
0 |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.092 |
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.627
MIN. FLATS WIDTH (HEAD)
0.615
MAX. HEAD THICKNESS
0.235
MIN. HEAD THICKNESS
0.203
MIN. WASHER FACE DIAMETER
0.608
MAX. BODY DIAMETER
0.4357
MIN. BODY DIAMETER
0.4348
NOMINAL GRIP LENGTH
1.375
NOMINAL TOTAL LENGTH
1.797
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.4375-20 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
