| INVENTORY |
| Part Number |

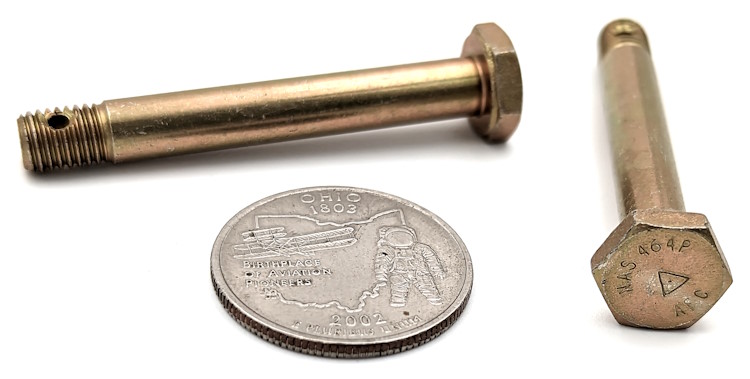

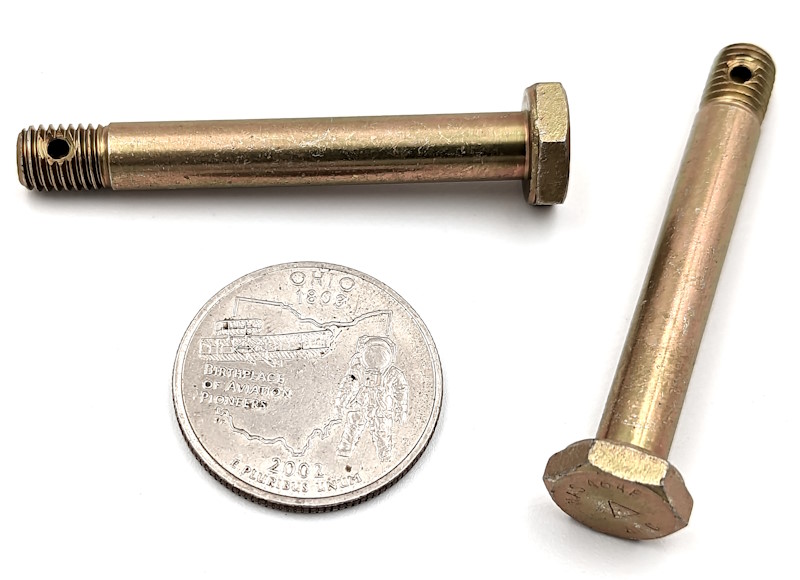

NAS464P4-24 |
| NSN Number |
5306-00-616-3805 |
| Stock |
181 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.030 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.440
MIN. FLATS WIDTH (HEAD)
0.428
MAX. HEAD THICKNESS
0.141
MIN. HEAD THICKNESS
0.109
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2492
MIN. BODY DIAMETER
0.2483
NOMINAL GRIP LENGTH
1.500
NOMINAL TOTAL LENGTH
1.844
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.2500-28 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
