NAS464P14A73 | SHEAR BOLT

INVENTORY
Part Number NAS464P14A73
Stock 0
Packaged Amount INQUIRE
REF PC Weight (LB) 1.04
OUT OF STOCK
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
1.253
MIN. FLATS WIDTH (HEAD)
1.240
MAX. HEAD THICKNESS
0.454
MIN. HEAD THICKNESS
0.422
MIN. WASHER FACE DIAMETER
1.210
MAX. BODY DIAMETER
0.8737
MIN. BODY DIAMETER
0.8725
NOMINAL GRIP LENGTH
4.563
MAX. GRIP LENGTH
4.578
MIN. GRIP LENGTH
4.547
NOMINAL TOTAL LENGTH
5.203
MAX. TOTAL LENGTH
5.234
MIN. TOTAL LENGTH
5.187
MAX. SHANK LENGTH
0.687
MIN. SHANK LENGTH
0.609
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.8750-14 UNJF-3A
LOCKING MECHANISM
N/A
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.

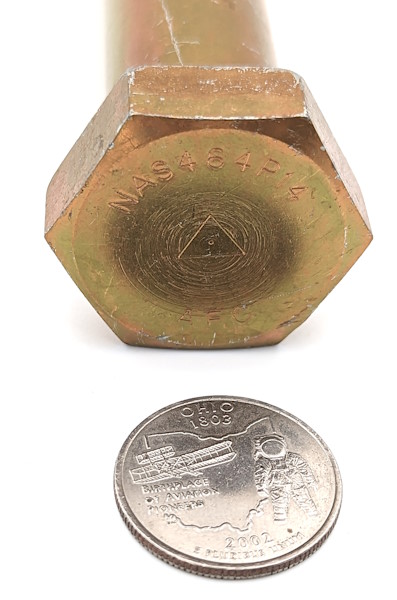

NAS464P14A73

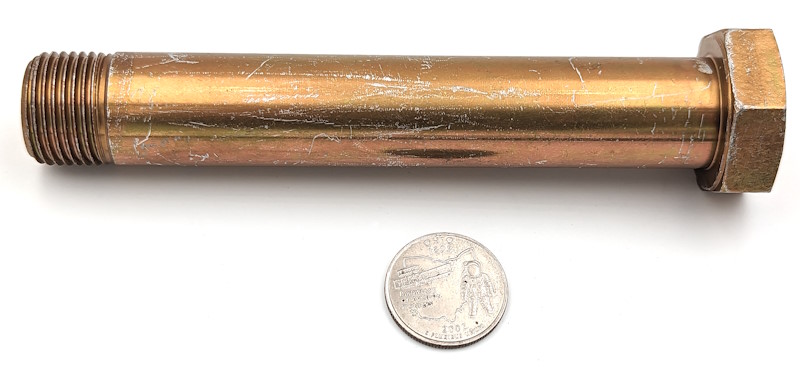

NAS464P14A73
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
