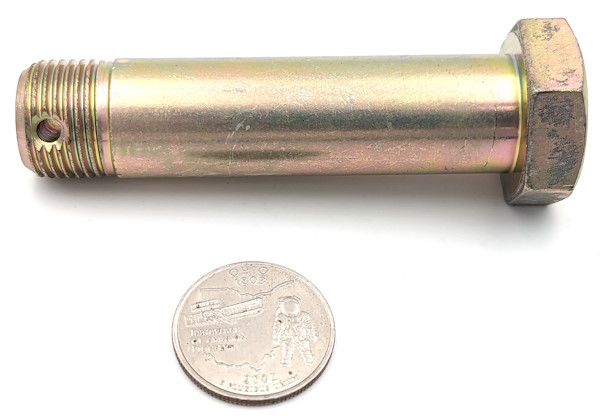

NAS464P12-39 | SHEAR BOLT

INVENTORY
Part Number NAS464P12-39
Stock 0
Packaged Amount INQUIRE
REF PC Weight (LB) 0.46
OUT OF STOCK
TIME TO MANUFACTURE
INQUIRE
All stock has sold, a new order for manufacturing is required.
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
1.065
MIN. FLATS WIDTH (HEAD)
1.052
MAX. HEAD THICKNESS
0.391
MIN. HEAD THICKNESS
0.359
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7488
MIN. BODY DIAMETER
0.7477
NOMINAL GRIP LENGTH
2.438
MAX. GRIP LENGTH
2.453
MIN. GRIP LENGTH
2.422
NOMINAL TOTAL LENGTH
3.000
MAX. TOTAL LENGTH
3.031
MIN. TOTAL LENGTH
2.984
MAX. SHANK LENGTH
0.609
MIN. SHANK LENGTH
0.531
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.7500-16 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
