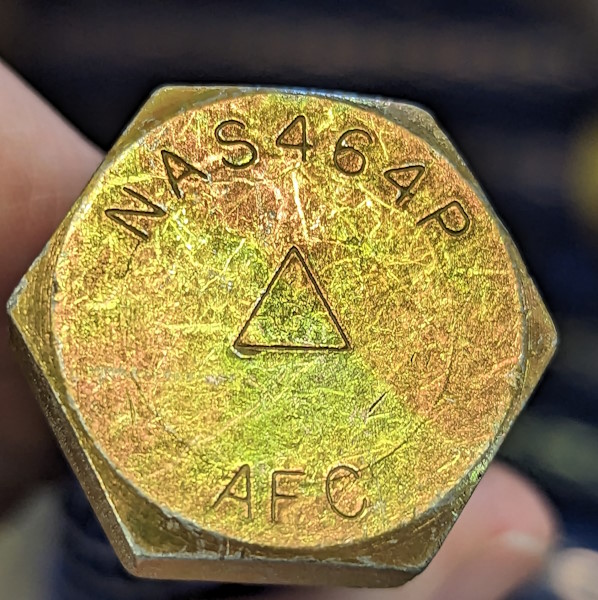

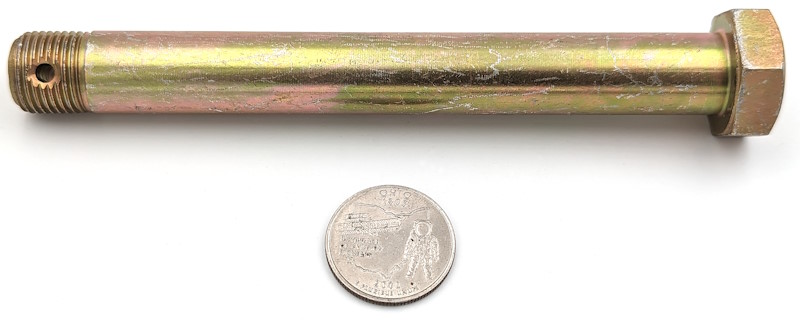

NAS464P10L75 | SHEAR BOLT
| INVENTORY |
| Part Number |
NAS464P10L75 |
| Stock |
129 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.51 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.940
MIN. FLATS WIDTH (HEAD)
0.928
MAX. HEAD THICKNESS
0.328
MIN. HEAD THICKNESS
0.296
MIN. WASHER FACE DIAMETER
0.898
MAX. BODY DIAMETER
0.6240
MIN. BODY DIAMETER
0.6230
NOMINAL GRIP LENGTH
4.688
NOMINAL TOTAL LENGTH
5.250
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE ENTIRE BOLT PER QQ-P-416, TYPE II, CLASS 2
THREAD SPECS
.6250-18 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
