| INVENTORY |
| Part Number |

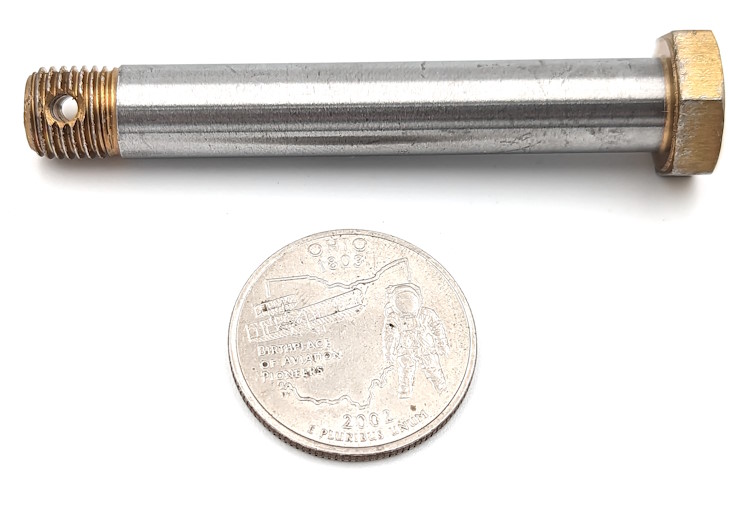

NAS464-6-34 |
| Stock |
548 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.089 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.564
MIN. FLATS WIDTH (HEAD)
0.552
MAX. HEAD THICKNESS
0.204
MIN. HEAD THICKNESS
0.172
MIN. WASHER FACE DIAMETER
0.523
MAX. BODY DIAMETER
0.3742
MIN. BODY DIAMETER
0.3737
NOMINAL GRIP LENGTH
2.125
NOMINAL TOTAL LENGTH
2.484
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Alloy Steel (8740, 4140, 4340, 8735, 6150)
METALLURGICAL HARDNESS
HRC 36-40
FINISH
CADMIUM PLATE HEAD AND THREADS PER QQ-P-416, TYPE II, CLASS 2 | SHANK WITH CORROSION PREVENTIVE COMPOUND AFTER GRIND
THREAD SPECS
.3750-24 UNJF-3A
LOCKING MECHANISM
Drilled Threads
COMMENTS / ADDITIONAL SPECIFICATIONS
160-180 KSI TENSILE STRENGTH | INACTIVE FOR NEW DESIGN AFTER JULY 1, 1976 SEE NAS6203 THRU NAS6220
