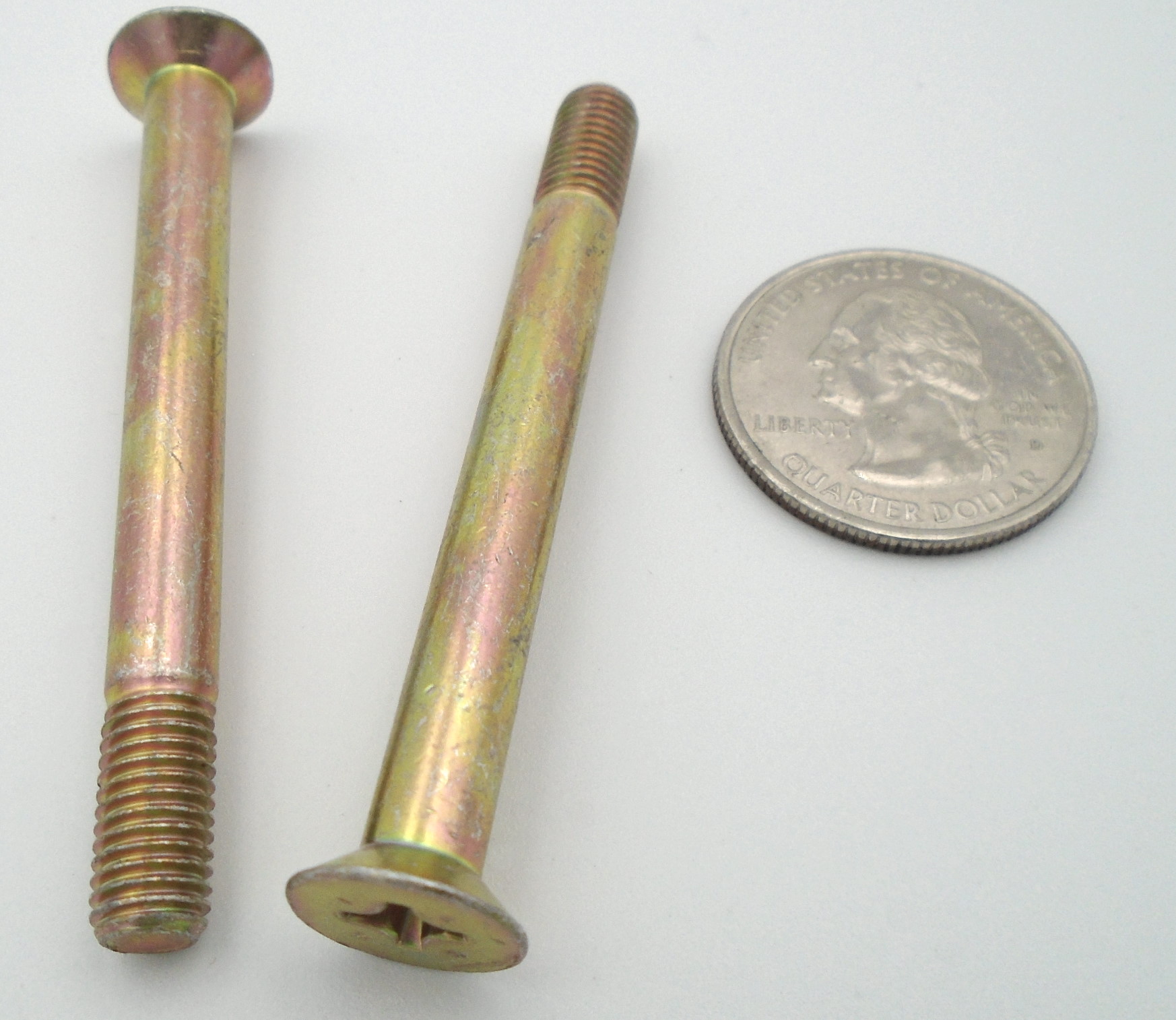

MS24694-S126 | STRUCTURAL MACHINE SCREW

INVENTORY
Part Number MS24694-S126
NSN Number 5305-00-058-4024
Stock 14,330*
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

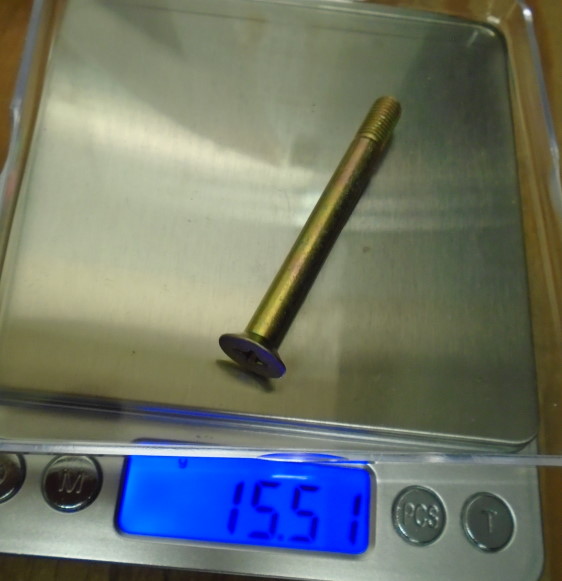

REF PC Weight (LB) 0.034
*Alternate PN(s) Relation
AN509-416R39 Inactive PN
×

Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. HEAD DIAMETER
0.507
MIN. HEAD DIAMETER
0.447
HEAD RECESS
PER NASM9006
MAX. BODY DIAMETER
0.249
MIN. BODY DIAMETER
0.246
NOMINAL GRIP LENGTH
1.938
MAX. GRIP LENGTH
1.954
MIN. GRIP LENGTH
1.922
NOMINAL TOTAL LENGTH
2.469
MAX. TOTAL LENGTH
2.500
MIN. TOTAL LENGTH
2.453
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
HRC 26-32
MIN. TENSILE STRENGTH
125 KSI
FINISH
Cadmium Plated Per AMS-QQ-P-416, Type II, Class 3
THREAD SPECS
.2500-28 UNF-3A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF DRAWING MS24694 REV.C (for latest see NASM24694)
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
MS24694-S126
MS24694-S126
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
