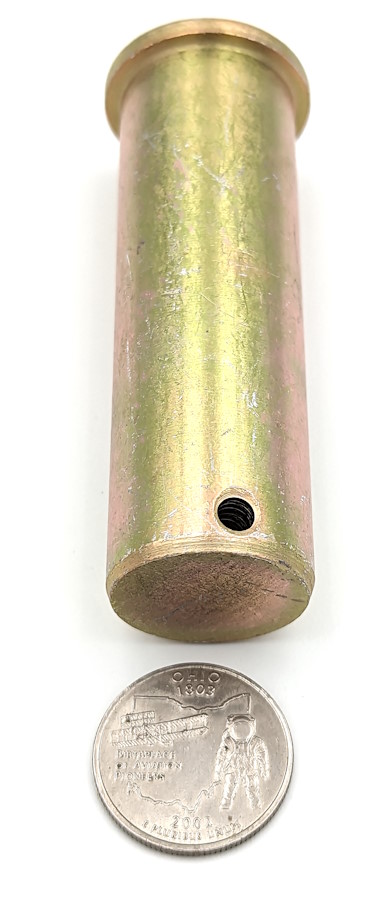

MS20392-12C91 | Aerospace Pins
| INVENTORY |
| Part Number |
MS20392-12C91 |
| Stock |
77* |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| REF PC Weight (LB) |
0.72 |
| *Alternate PN(s) |
Relation |
| AN406-91 |
Obsolete PN
|
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
BODY DIAMETER
TOL: +.000 / -.002
0.996
HEAD DIAMETER
TOL: ± .016
1.187
EFFECTIVE LENGTH
TOL: ± .010
2.844
TOTAL LENGTH
TOL: ± .010
3.250
HEAD THICKNESS
TOL: ± .016
0.125
HOLE DIAMETER
TOL: ± .010
0.171
GRADE
UNS G40370, UNS G41300, UNS G86300, UNS G87400
FINISH
Cadmium Plated, AMS-QQ-P-416, TYPE II, CLASS 2
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
