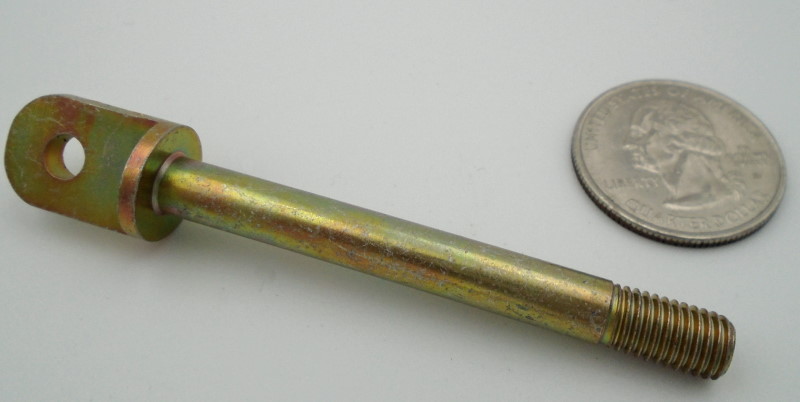

AN43B-22A | Aerospace Eye Bolt

INVENTORY
Part Number AN43B-22A
NSN Number 5306-01-274-4470
Stock 80
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

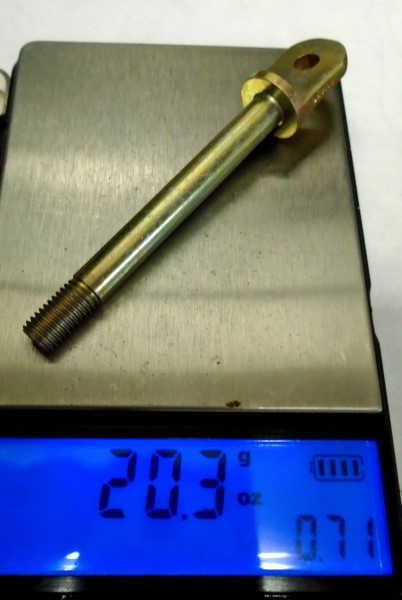

REF PC Weight (LB) 0.045
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. BODY DIAMETER
0.249
MIN. BODY DIAMETER
0.246
NOMINAL GRIP LENGTH
1.813
MAX. GRIP LENGTH
1.829
MIN. GRIP LENGTH
1.797
NOMINAL LENGTH
2.281
MAX. LENGTH
2.312
MIN. LENGTH
2.265
MAX. EYE HOLE DIAMETER
0.192
MIN. EYE HOLE DIAMETER
0.190
NOMINAL HEAD RADIUS
0.250
MAX. HEAD RADIUS
0.266
MIN. HEAD RADIUS
0.234
NOMINAL COLLAR DIAMETER
0.500
MAX. COLLAR DIAMETER
0.516
MIN. COLLAR DIAMETER
0.484
NOMINAL COLLAR HEIGHT
0.078
MAX. COLLAR HEIGHT
0.094
MIN. COLLAR HEIGHT
0.062
MATERIAL
Alloy Steel
METALLURGICAL HARDNESS
HRC 26-32
FINISH
Cadmium Plated AMS-QQ-P-416, Type II, Class 2
THREAD SPECS
.2500-28 UNF-3A
LOCKING MECHANISM
None
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN42-AN49 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
AN43B-22A
AN43B-22A
×
