AN182C30 | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN182C30
Stock 310
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.48
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
1.066
MIN. FLATS WIDTH (HEAD)
1.053
MAX. HEAD THICKNESS
0.422
MIN. HEAD THICKNESS
0.390
MIN. WASHER FACE DIAMETER
1.023
MAX. BODY DIAMETER
0.7488
MIN. BODY DIAMETER
0.7481
NOMINAL GRIP LENGTH
2.062
MAX. GRIP LENGTH
2.078
MIN. GRIP LENGTH
2.046
NOMINAL LENGTH
3.156
MAX. LENGTH
3.187
MIN. LENGTH
3.140
NOMINAL HOLE DIAMETER (SHANK)
0.141
MAX. HOLE DIAMETER (SHANK)
0.151
MIN. HOLE DIAMETER (SHANK)
0.141
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.7500-16 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

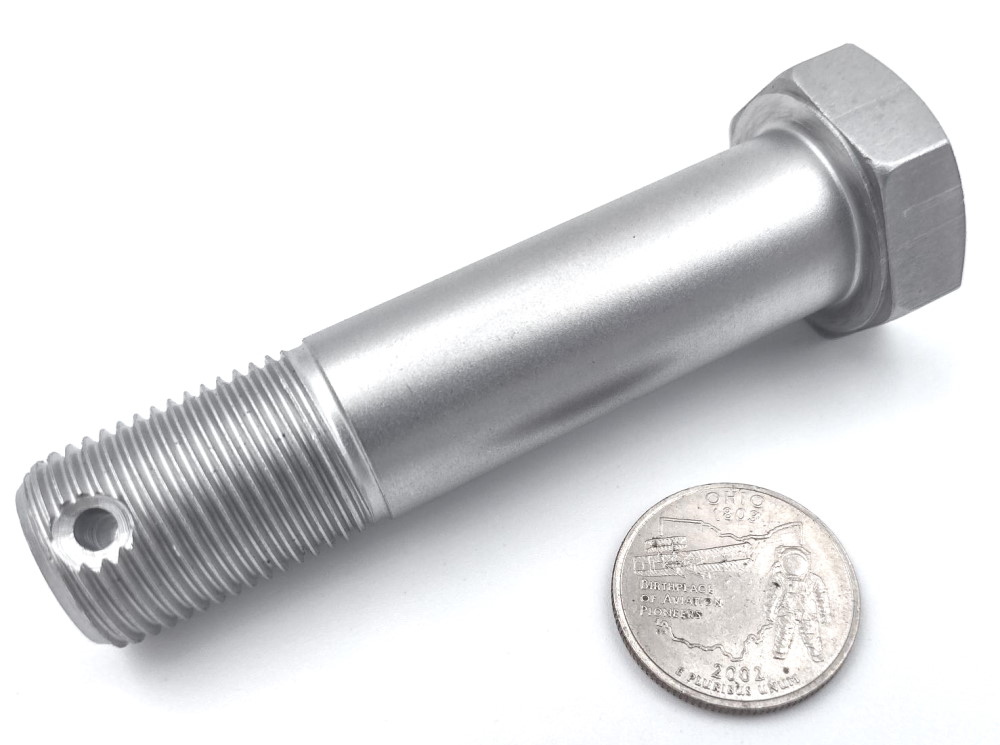

AN182C30

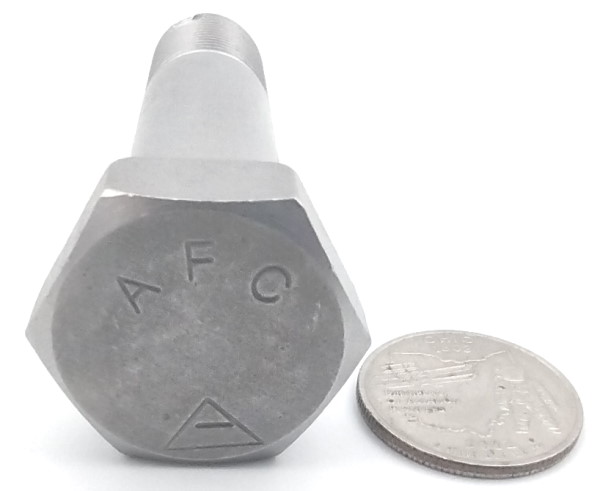

AN182C30

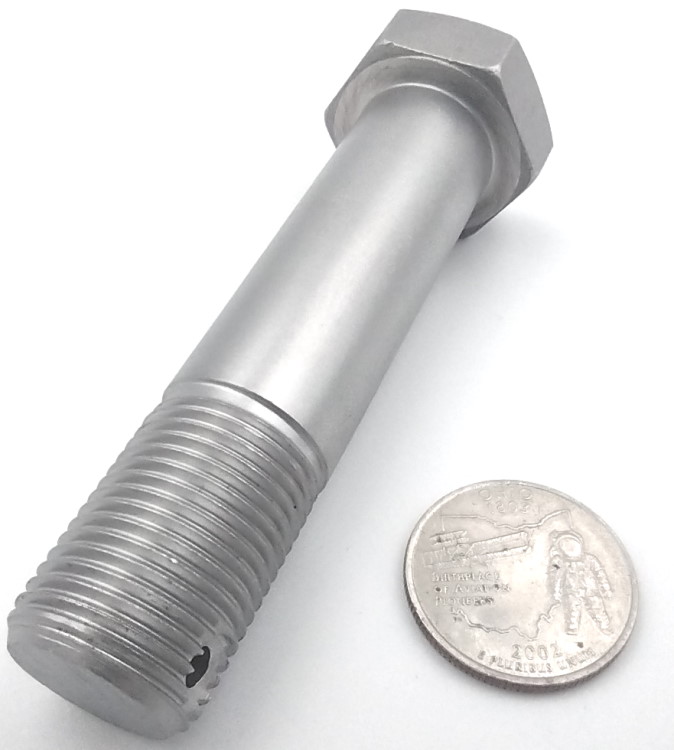

AN182C30

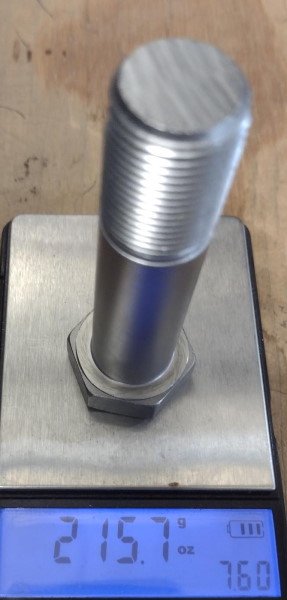

AN182C30
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
