AN179C34A | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN179C34A
Stock 144
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.30
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.877
MIN. FLATS WIDTH (HEAD)
0.865
MAX. HEAD THICKNESS
0.328
MIN. HEAD THICKNESS
0.296
MIN. WASHER FACE DIAMETER
0.835
MAX. BODY DIAMETER
0.5616
MIN. BODY DIAMETER
0.5611
NOMINAL GRIP LENGTH
2.750
MAX. GRIP LENGTH
2.766
MIN. GRIP LENGTH
2.734
NOMINAL LENGTH
3.656
MAX. LENGTH
3.687
MIN. LENGTH
3.640
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.5625-18 UNF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

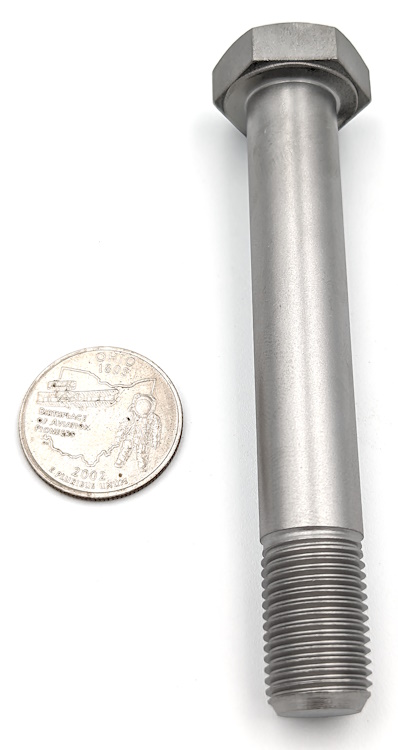

AN179C34A

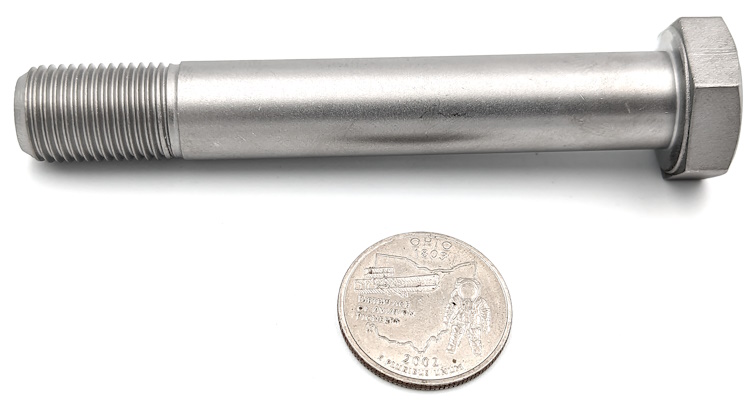

AN179C34A

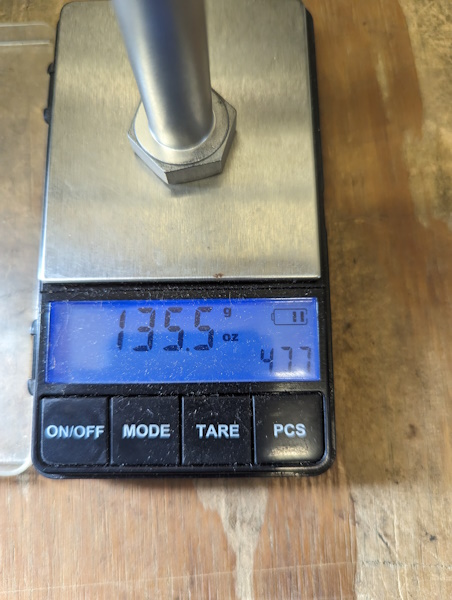

AN179C34A

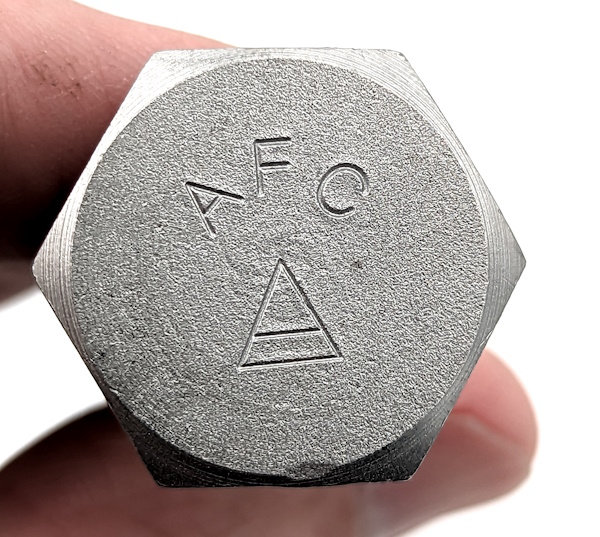

AN179C34A
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
