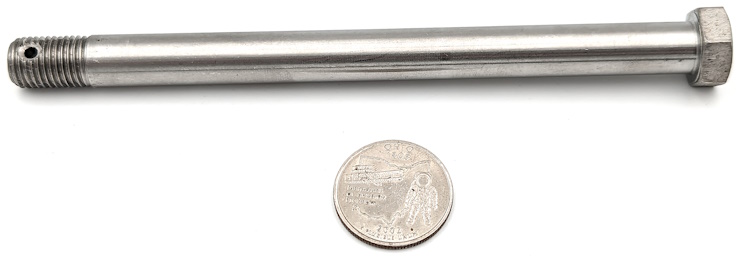

AN177C54 | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN177C54 |
| Stock |
19 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

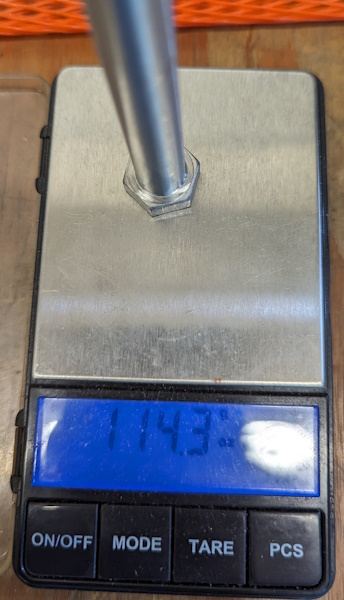

| REF PC Weight (LB) |
0.25 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.627
MIN. FLATS WIDTH (HEAD)
0.615
MAX. HEAD THICKNESS
0.266
MIN. HEAD THICKNESS
0.234
MIN. WASHER FACE DIAMETER
0.585
MAX. BODY DIAMETER
0.4367
MIN. BODY DIAMETER
0.4362
NOMINAL GRIP LENGTH
4.938
NOMINAL HOLE DIAMETER (SHANK)
0.106
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.4375-20 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
