AN176C30 | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN176C30
Stock 174
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

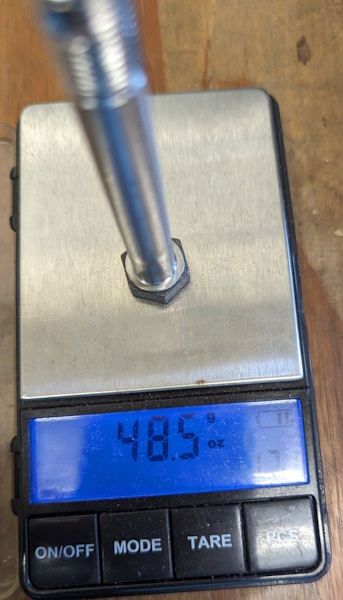

REF PC Weight (LB) 0.107
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.565
MIN. FLATS WIDTH (HEAD)
0.553
MAX. HEAD THICKNESS
0.235
MIN. HEAD THICKNESS
0.203
MIN. WASHER FACE DIAMETER
0.523
MAX. BODY DIAMETER
0.3742
MIN. BODY DIAMETER
0.3737
NOMINAL GRIP LENGTH
2.438
MAX. GRIP LENGTH
2.454
MIN. GRIP LENGTH
2.422
NOMINAL LENGTH
3.078
MAX. LENGTH
3.109
MIN. LENGTH
3.062
NOMINAL HOLE DIAMETER (SHANK)
0.106
MAX. HOLE DIAMETER (SHANK)
0.116
MIN. HOLE DIAMETER (SHANK)
0.106
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.3750-24 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

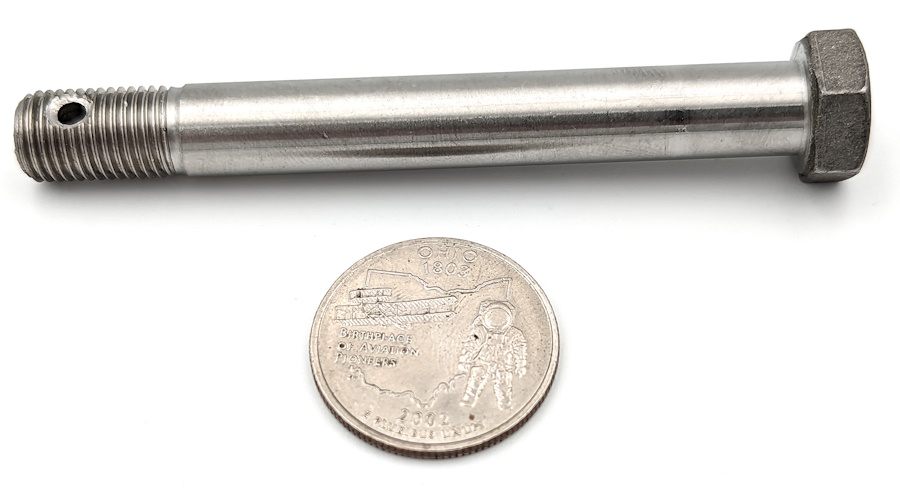

AN176C30
AN176C30
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
