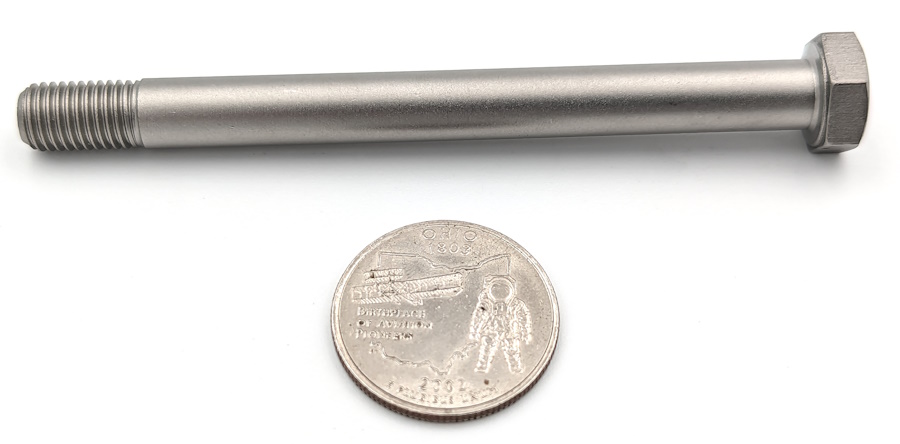

AN175C33A | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN175C33A
Stock 50
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE

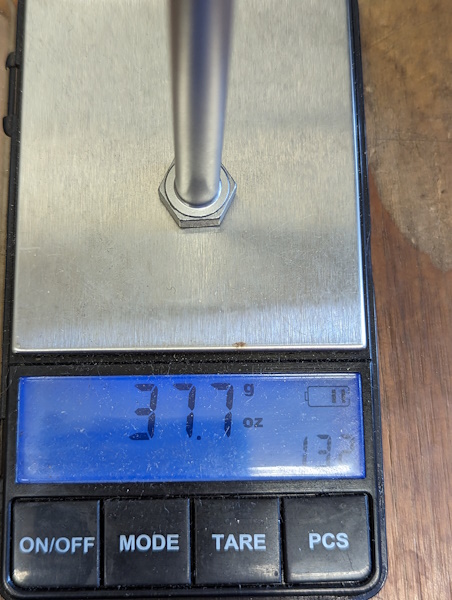

REF PC Weight (LB) 0.083
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.490
MAX. HEAD THICKNESS
0.204
MIN. HEAD THICKNESS
0.172
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3117
MIN. BODY DIAMETER
0.3112
NOMINAL GRIP LENGTH
2.938
MAX. GRIP LENGTH
2.954
MIN. GRIP LENGTH
2.922
NOMINAL LENGTH
3.469
MAX. LENGTH
3.500
MIN. LENGTH
3.453
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.3125-24 UNF-3A
LOCKING MECHANISM
N/A
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
AN175C33A
AN175C33A
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
