AN175C13 | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN175C13 |
| Stock |
27 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |

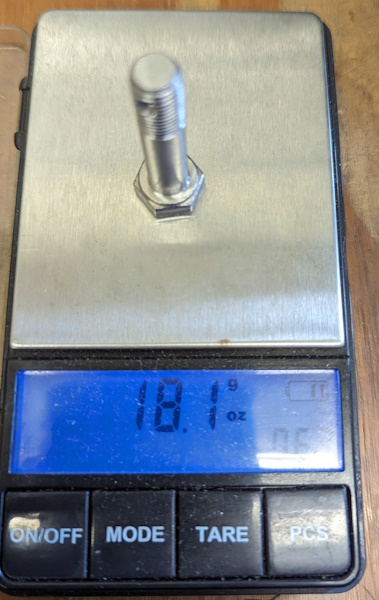

| REF PC Weight (LB) |
0.040 |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.502
MIN. FLATS WIDTH (HEAD)
0.490
MAX. HEAD THICKNESS
0.204
MIN. HEAD THICKNESS
0.172
MIN. WASHER FACE DIAMETER
0.460
MAX. BODY DIAMETER
0.3117
MIN. BODY DIAMETER
0.3112
NOMINAL GRIP LENGTH
0.938
NOMINAL HOLE DIAMETER (SHANK)
0.076
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.3125-24 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com
