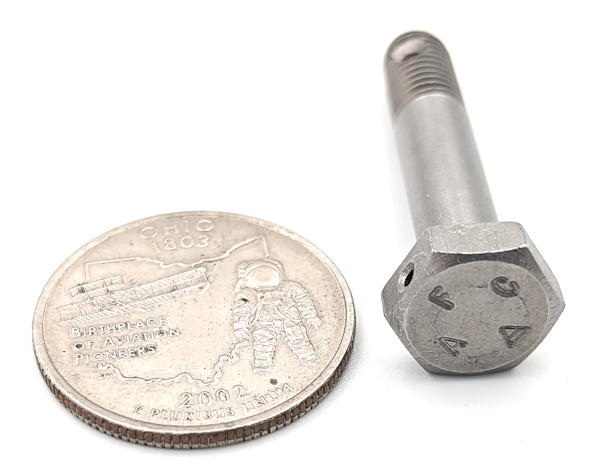

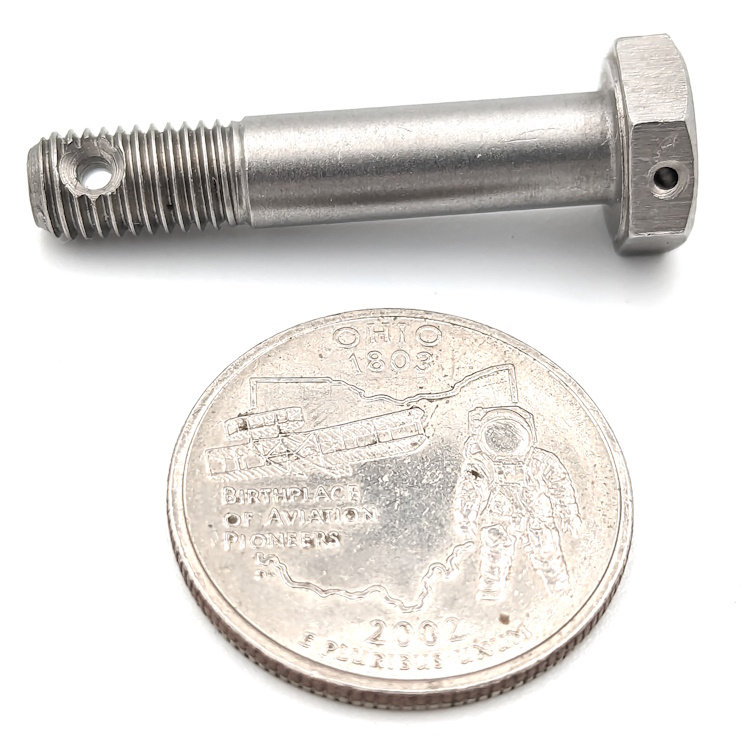

AN174H12 | Close Tolerance Aircraft Bolts
| INVENTORY |
| Part Number |
AN174H12 |
| NSN Number |
5306-00-145-7659 |
| Stock |
5,011 |
| Condition |
NEW |
| Manufacturer |
AIRFASCO |
| Unit of Measure |
EA |
| Packaged Amount |
INQUIRE |
| Retail Price |
| A web price is unavailable for this item. Please request a quote. |
MAX. FLATS WIDTH (HEAD)
0.440
MIN. FLATS WIDTH (HEAD)
0.428
MAX. HEAD THICKNESS
0.172
MIN. HEAD THICKNESS
0.140
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2492
MIN. BODY DIAMETER
0.2487
NOMINAL GRIP LENGTH
0.812
NOMINAL HOLE DIAMETER (HEAD)
0.046
MAX. HOLE DIAMETER (HEAD)
0.056
MIN. HOLE DIAMETER (HEAD)
0.046
NOMINAL HOLE DIAMETER (SHANK)
0.076
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
GRADE
G40370, G86300, G87400, G41400, G86300,G87350, OR G41300
METALLURGICAL HARDNESS
HRC 26-32
FINISH
CADMIUM PLATED PER QQ-P-416, TYPE II, CLASS 3
THREAD SPECS
.2500-28 UNF-3A
LOCKING MECHANISM
Drilled Head & Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
