AN174C20 | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN174C20
Stock 143
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.032
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.440
MIN. FLATS WIDTH (HEAD)
0.428
MAX. HEAD THICKNESS
0.172
MIN. HEAD THICKNESS
0.140
MIN. WASHER FACE DIAMETER
0.398
MAX. BODY DIAMETER
0.2492
MIN. BODY DIAMETER
0.2487
NOMINAL GRIP LENGTH
1.562
MAX. GRIP LENGTH
1.578
MIN. GRIP LENGTH
1.546
NOMINAL LENGTH
2.031
MAX. LENGTH
2.062
MIN. LENGTH
2.015
NOMINAL HOLE DIAMETER (SHANK)
0.076
MAX. HOLE DIAMETER (SHANK)
0.086
MIN. HOLE DIAMETER (SHANK)
0.076
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.2500-28 UNF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

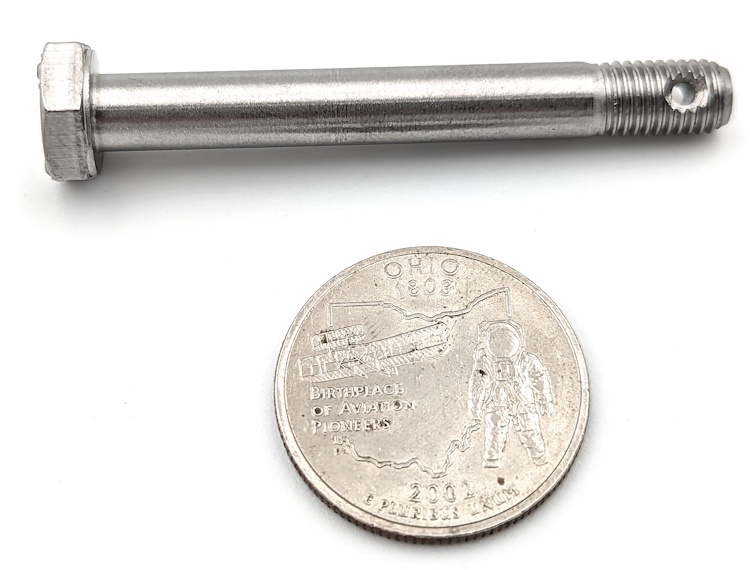

AN174C20
