AN173C12 | Close Tolerance Aircraft Bolts

INVENTORY
Part Number AN173C12
Stock 1,915
Condition NEW
Manufacturer AIRFASCO
Unit of Measure EA
Packaged Amount INQUIRE
REF PC Weight (LB) 0.0130
Retail Price
A web price is unavailable for this item. Please request a quote.
PLACE RFQ BELOW
Email*
Company
Quantity*
Reference #
Comment
Button
SENDING - PLEASE WAIT

Note: * Email and Quantity are required.

SPECIFICATIONS
UoM
Standard,Inches
MAX. FLATS WIDTH (HEAD)
0.377
MIN. FLATS WIDTH (HEAD)
0.365
MAX. HEAD THICKNESS
0.141
MIN. HEAD THICKNESS
0.109
MIN. WASHER FACE DIAMETER
0.335
MAX. BODY DIAMETER
0.1894
MIN. BODY DIAMETER
0.1889
NOMINAL GRIP LENGTH
0.875
MAX. GRIP LENGTH
0.891
MIN. GRIP LENGTH
0.859
NOMINAL LENGTH
1.281
MAX. LENGTH
1.312
MIN. LENGTH
1.265
NOMINAL HOLE DIAMETER (SHANK)
0.070
MAX. HOLE DIAMETER (SHANK)
0.080
MIN. HOLE DIAMETER (SHANK)
0.070
MATERIAL
Stainless Steel
GRADE
UNS 43100
FINISH
PASSIVATION PER AMS2700
THREAD SPECS
.1900-32 NF-3A
LOCKING MECHANISM
Drilled Threads
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
DRAWING(S)
PDF Drawing of AN173-AN186 Series
DWG / DXF format drawings may be available on request. Contact: salesbid@airfasco.com

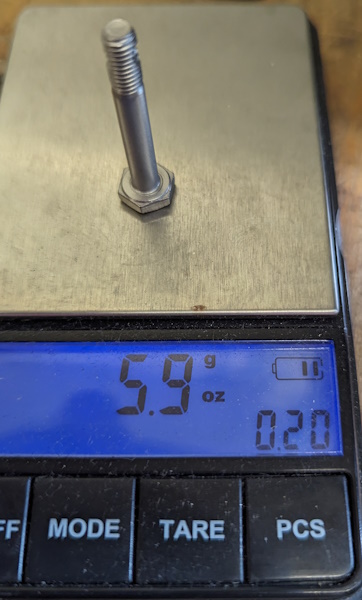

AN173C12

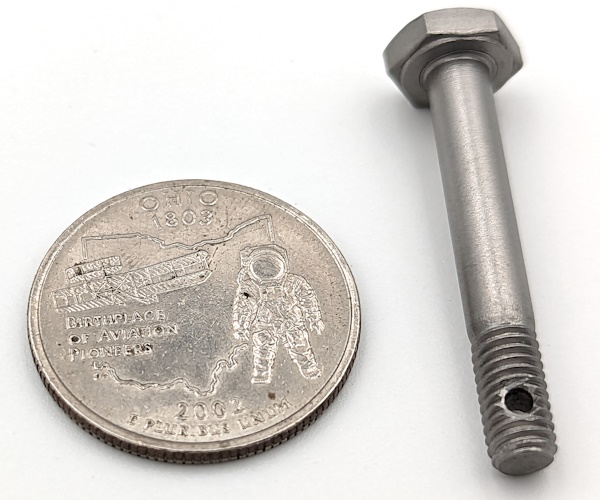

AN173C12

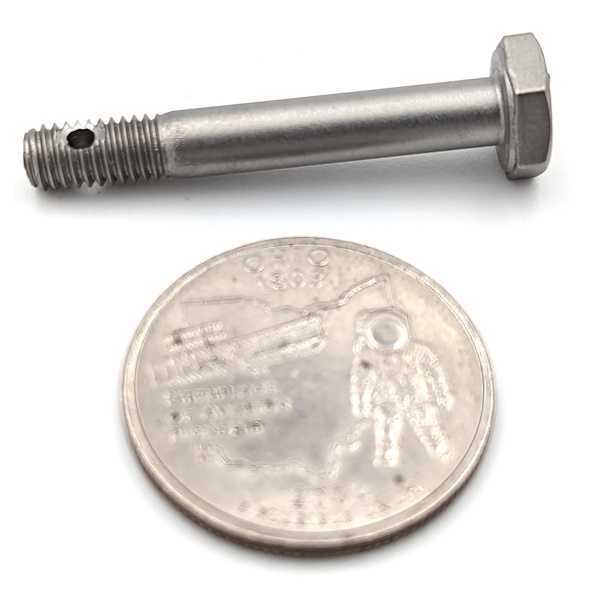

AN173C12

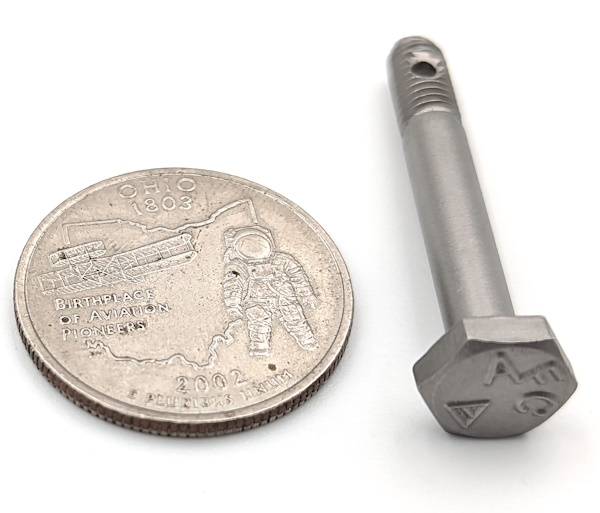

AN173C12
×
The prints & data found here within are not to be used for the manufacturer, procurement, or use of this product. They are for educational proposes only.
